Case Study / Wastewater Treatment
500 m³/d Food Processing Wastewater Treatment Plant
Complete DAF + MBR treatment system for a large food processing facility, achieving discharge standards with 98% COD removal.
500 m³/dTreatment Capacity
98%COD Removal Rate
DAF + MBRCore Technology
Project Overview
Food Processing Wastewater Challenge
A large food and beverage processing plant in Shandong needed to upgrade its wastewater treatment system to meet stringent new discharge standards while handling variable organic loads.
The Challenge
The facility processes over 200 tons of food products daily, generating wastewater with high concentrations of BOD, COD, oils, fats, and suspended solids. The existing treatment system was unable to consistently meet the revised discharge standards (COD < 50 mg/L).
- High and variable organic load (COD: 2,000-4,500 mg/L)
- Elevated fats, oils, and grease (FOG) content
- Fluctuating pH and temperature
- Limited available footprint for expansion
- Need for reliable, low-maintenance operation
Solution
Treatment Process Design
Soto Machinery engineered a two-stage treatment system combining Dissolved Air Flotation (DAF) with MBR Membrane Bioreactor technology for optimal performance.
1
Screening & Equalization
Coarse and fine screens remove large solids. Equalization tank balances flow and load fluctuations.
2
DAF Pre-Treatment (FOG/SS removal)
Dissolved Air Flotation removes FOG, suspended solids, and reduces COD by 40-60% through micro-bubble flotation.
3
MBR Biological Treatment
Membrane Bioreactor combines aerobic biological treatment with ultrafiltration membranes for high-quality effluent.
4
Discharge & Reuse
Treated water meets discharge standards. Optional UV disinfection enables safe reuse for non-potable applications.
Equipment
Key Equipment Supplied
Soto Machinery manufactured and supplied all core treatment equipment for this project.
Wastewater

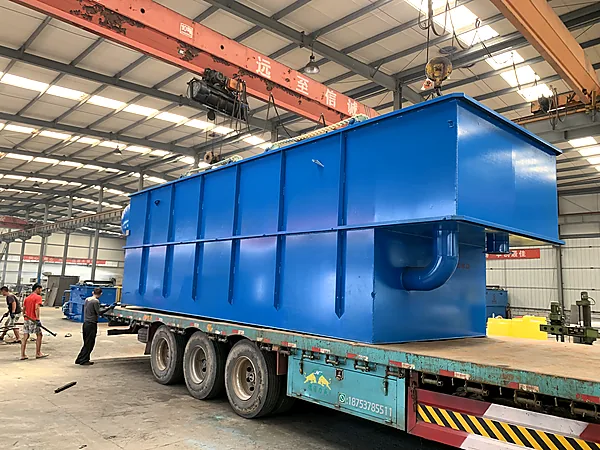

DAF System
High-efficiency dissolved air flotation for FOG and suspended solids removal.
Learn More →
Wastewater
MBR System
Membrane bioreactor for advanced biological treatment and solid-liquid separation.
Learn More →
Wastewater

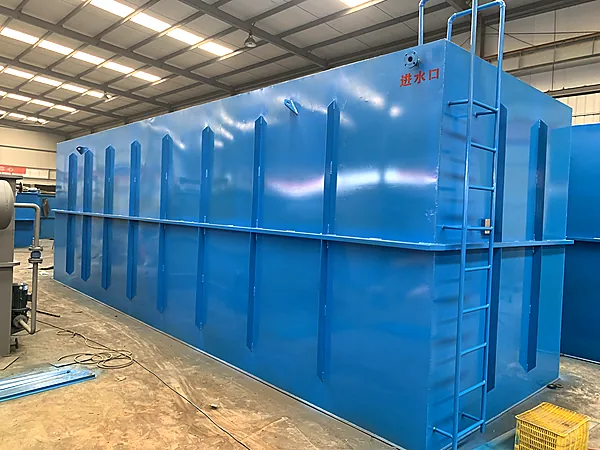

Integrated STP
Compact, pre-assembled treatment system for efficient installation and operation.
Learn More →
Wastewater
Multi-Media Filter
Final polishing filter for residual suspended solids removal.
Learn More →
Results
Treatment Performance
After commissioning, the system consistently meets discharge standards with excellent removal efficiency.
98%COD Removal
96%BOD Removal
99%SS Removal
<50Effluent COD (mg/L)
